In real agricultural conditions, failure is rarely caused by load alone. The primary reason is contamination—dust, soil, moisture, and debris entering the bearing system.
Once contaminants penetrate the seal, lubrication breaks down quickly, leading to wear, overheating, and premature failure. This is why sealing design—especially triple lip seals—plays a critical role in modern disc harrow bearings.

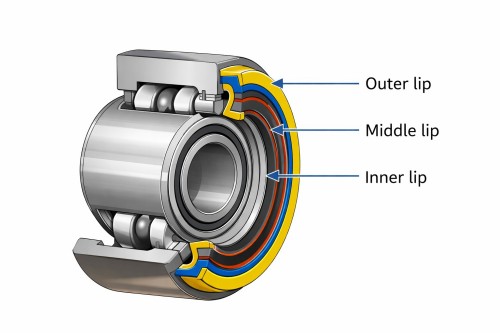

What Is a Triple Lip Seal?
A triple lip seal uses a multi-layer structure to provide superior protection:
- Outer lip – blocks large debris
- Middle lip – stops fine dust particles
-
Inner lip – retains grease inside the bearing
Compared to single or double lip seals, this design creates a multi-barrier system, significantly improving reliability in harsh farming environments.

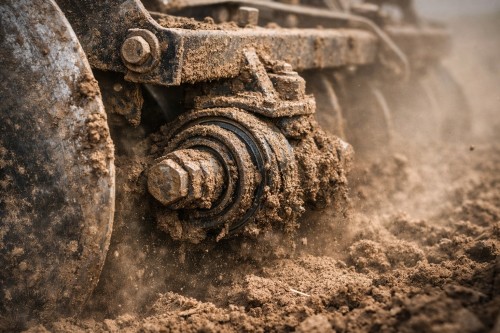

Why Standard Seals Fail in Agricultural Applications
1. Dust and Abrasive Soil
Fine particles enter the bearing and cause abrasive wear, damaging raceways and rolling elements.
2. Moisture Contamination
Water mixes with grease, reducing lubrication performance and increasing corrosion risk.
3. Pressure Fluctuations
Temperature and speed changes create pressure differences, allowing contaminants to be drawn inside weak seals.
Learn how soil conditions affect bearing performance:
Disc Harrow Bearings for Different Soil Conditions: How to Choose the Right Bearing
How Triple Lip Seals Improve Performance
Tested in field conditions
Triple lip seals reduce contamination ingress by up to 90% compared to standard single-lip designs in sandy soils.
Better Grease Retention
Triple lip seals help maintain lubrication, extending service intervals.
Related reading:
How Greasing Frequency Affects Disc Harrow Bearing Service Life
Lower Maintenance Costs
Replacing a standard bearing twice per season costs you not only the part ($30) but also 2 hours of downtime ($80/hour labor + lost productivity). Investing in a triple-lip seal bearing at $45 can save you $95 per axle per year.
- Fewer replacements
- Reduced downtime
- Lower labor costs
In many cases, sealing performance impacts total cost more than bearing price.
Recommended Bearing Models for Harsh Conditions

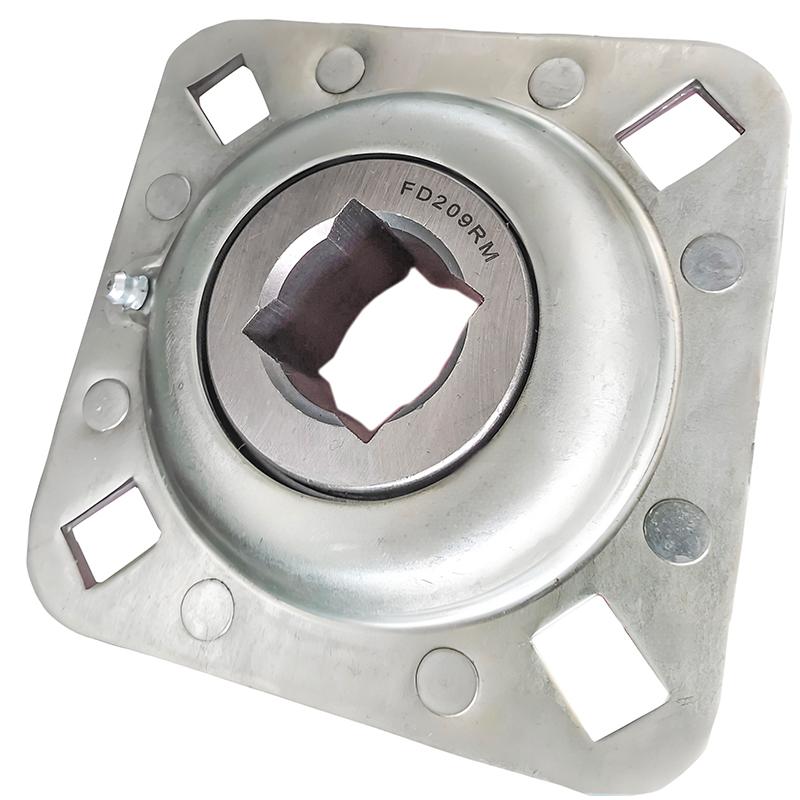

FD209RM Disc Harrow Bearing
Applications: FlexKing, Kewanee disc harrows
- Triple lip seal for heavy contamination environments
- Material: GCr15 chrome steel
- High resistance to shock loads
Interchangeable: FD209RM, FD209R, DHU1-1/8S-209

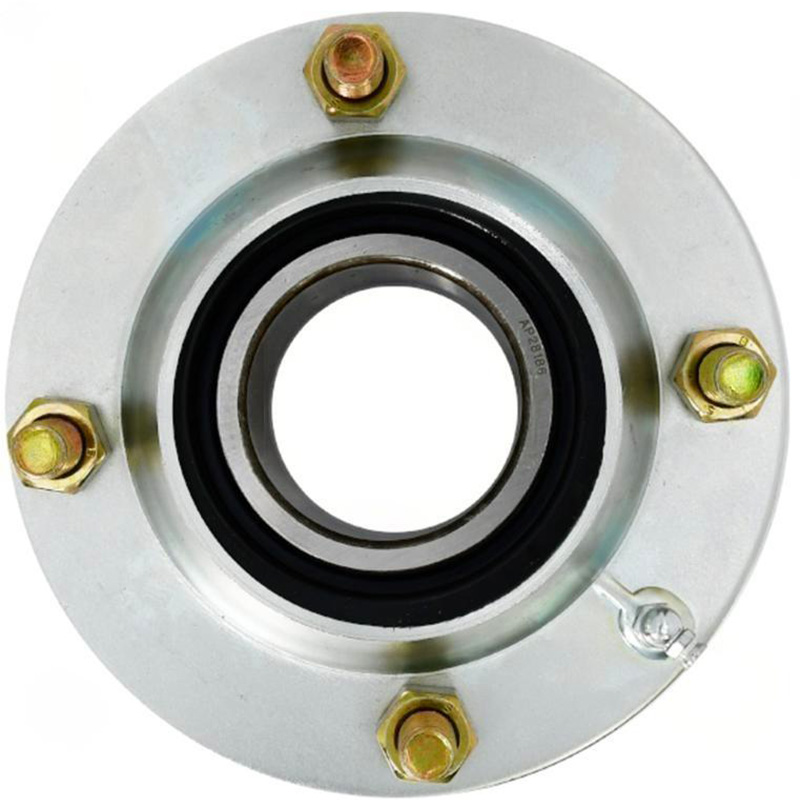

AP28186 Agricultural Bearing
Applications: John Deere disc harrows, balers
- Bore: 2.1875 inch (~55.56 mm)
- OD: 3.937 inch (~100 mm)
- Deep groove ball bearing design
Supports both sealed and relubricable configurations.
How to Choose Between FD209RM and AP28186
| Factor | FD209RM | AP28186 |
|---|---|---|
| Application | Heavy-duty disc harrow | OEM replacement |
| Sealing | High priority | Flexible |
| Maintenance | Low maintenance | Depends on usage |
Sealed vs Relubricable Bearings
Choosing between sealed and relubricable bearings depends on your maintenance strategy.
Learn more:
- When Should You Choose Relubricable Disc Harrow Bearings?
- Common Mistakes in Maintaining Relubricable Agricultural Bearings
Common Buyer Mistakes
- Focusing only on price
- Ignoring sealing design
- Not considering soil conditions
A bearing that meets load requirements can still fail early if sealing is inadequate.
Conclusion
In agricultural applications:
- Contamination is the main cause of failure
- Seal design determines bearing lifespan
- Triple lip seals offer a proven solution
Not sure which seal design fits your working conditions?
You can start by reviewing the FD209RM specifications or talk to our team for application-based recommendations.
